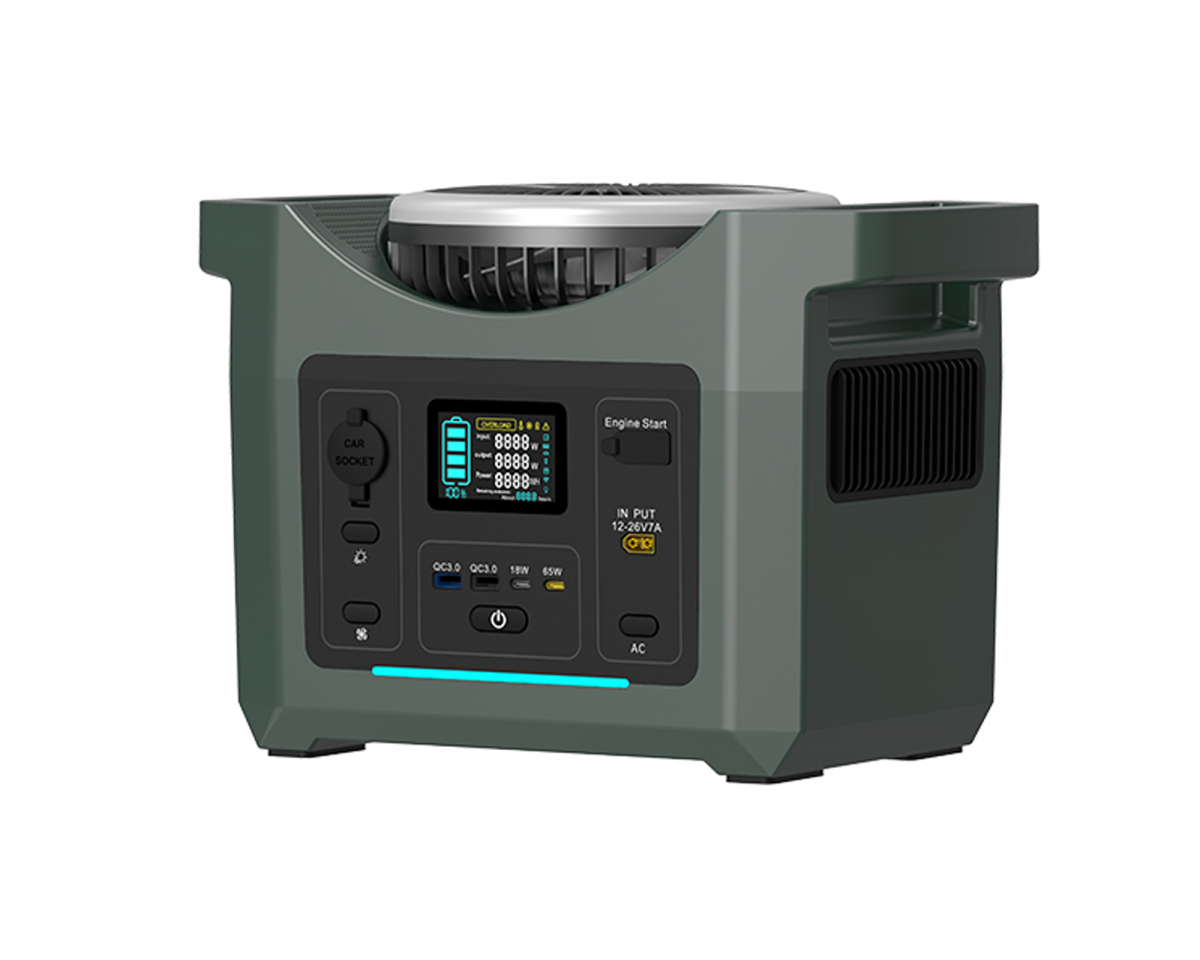

Product Introduction：

*Compact size, elegant appearance, quiet operation, lightweight and portable；

*Fast charging speed, long discharge time, wide charging range；

*High load capacity with a full-load power rating of 320W, capable of meeting most outdoor power needs.；

*Protection functions: overcurrent, overvoltage, short circuit, overtemperature；

*Operating temperature range: -10°C to +40°C, forced-air cooling environment.

*Compliant with CE certification.

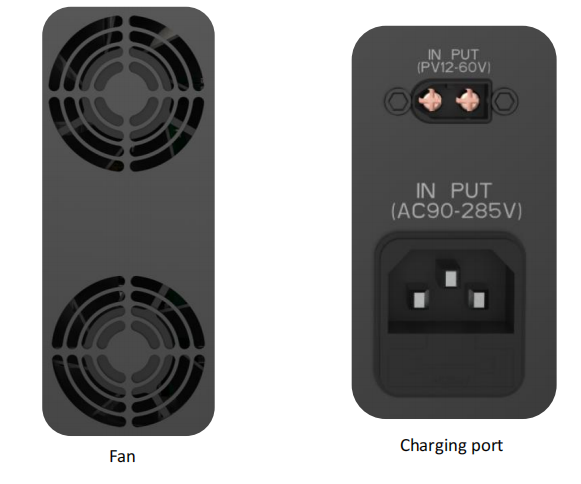

*The charging port supports both PV (12-60V) and AC (90-285V) charging, offering a wide range of input voltages. With a charging power of 300W, it delivers fast charging speeds, minimizing wait times.

*The exhaust vent, featuring two high-efficiency fans and an integrated air duct, rapidly dissipates heat.

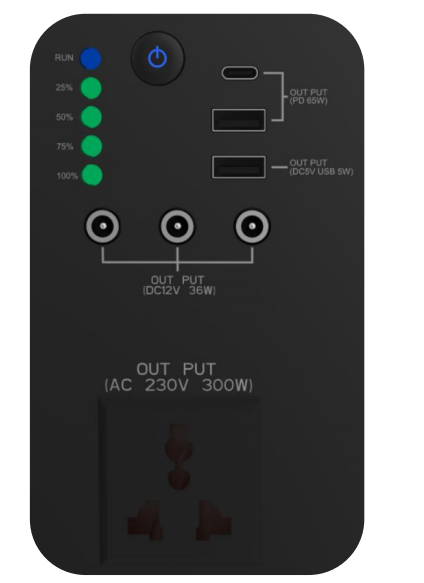

*Power button：

1. Short press—Displays battery level; battery indicator light illuminates for 15 seconds.

2. Press and hold for 3 seconds to activate power output. The operation indicator will remain solid blue, and the battery indicator will stay lit.

3. Press and hold for 3 seconds again to turn off the power output.

*PD65W Port: Type-C with intermediate USB interface, 65W power output, compatible with 5V/9V/12V/15V/20V input voltages.

*DC USB 5W Port: Charges at 5V 1A, 5W power; Connection port for updating the main unit.

*DC12V 36W Connector: DC5521 port, maximum power 36W.

*AC 230V 300W Outlet: Universal outlet for worldwide use, rated power 300W.

*300Ah lithium iron phosphate battery, composed of a single prismatic cell, offers superior charge/discharge consistency and higher energy density.

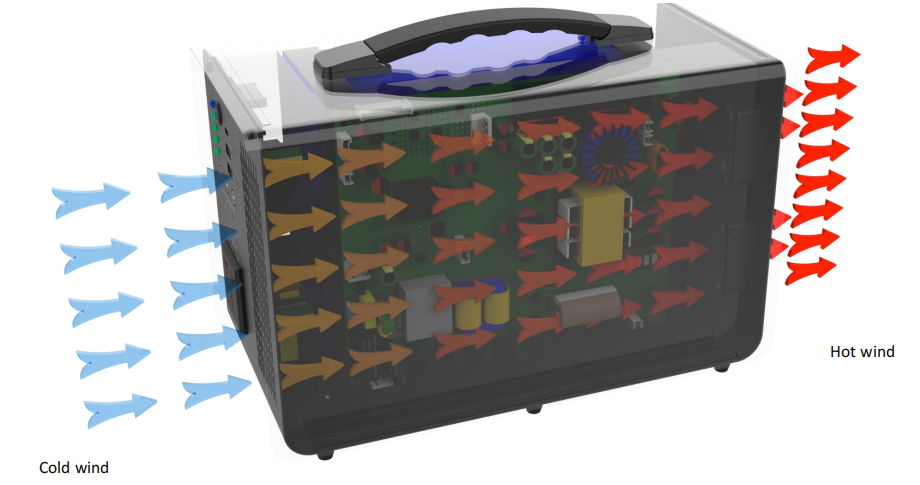

*Air duct structure design separates heat from the battery and motherboard, more precisely drawing out high temperatures inside the device to maintain optimal operating temperatures.

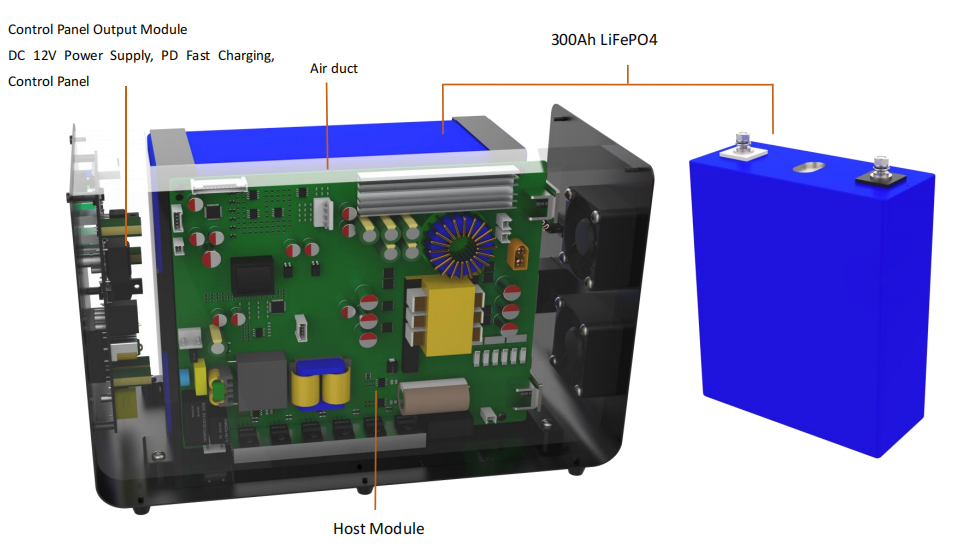

*The entire unit consists of four components: the exterior assembly module, the main unit module, the control panel output module, and the high-efficiency battery module. It supports remote DIY assembly.
